AC-6-10P-1.27

Electrical

Switching Non-Switching
Rated Voltage 24 V 50 V
Rated Current 25 mA 100 mA
Initial After Life Test
Contact Resistance 50 mΩ Max 100 mΩ Max
Insulation resistance 100MΩ / DC500V
Withstanding voltage AC300V / 1Min

Material & Mechanical

Base Thermoplastic, UL94V-0
Cover Thermoplastic, UL94V-0
Button Thermoplastic, UL94V-0
Terminal Phosphor bronze, Gold plating
Pitch 1.27 mm
Mechanical Life 2000 cycles
Operating Force 500 g Max
Switch Travel 1 mm
Operating Temperature -40 ~ +85 ℃
Storage Temperature -40 ~ +85 ℃

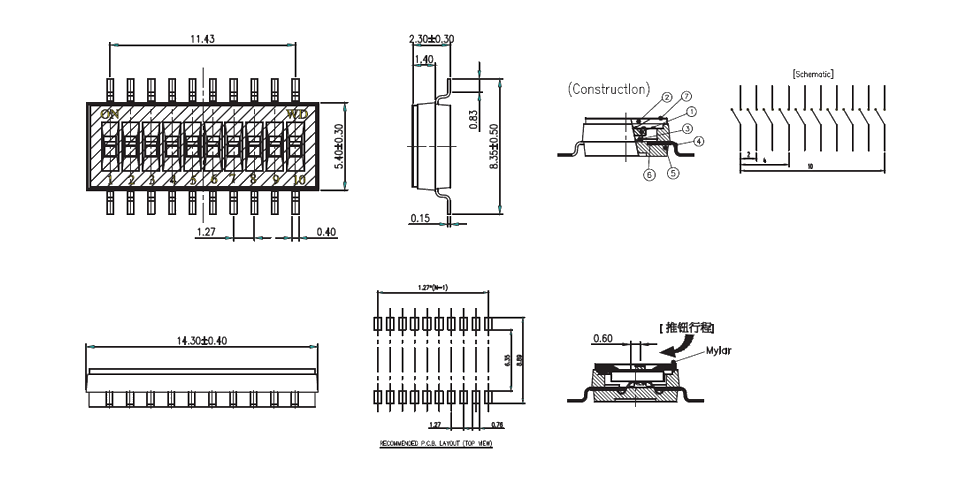

Dimensions
