AC335K-3.50

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 10 A - 10 A
Wire Range 26 ~ 16 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 160 V 200 V 400 V
Rated Current 8 A 8 A 8 A
Impulse Withstand Voltage 2.5 KV 2.5 KV 2.5 KV
Conductor Cross Section (Solid) 0.2 ~ 1.5 mm²
Conductor Cross Section (Flexible) 0.2 ~ 1.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 3.50 mm / 2 ~ 24 poles
Stripping Length 4 ~ 5 mm
Screw / Torque M2.0 / 0.2 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature -
Pin Dimensions -
PCB Hole Diameter -

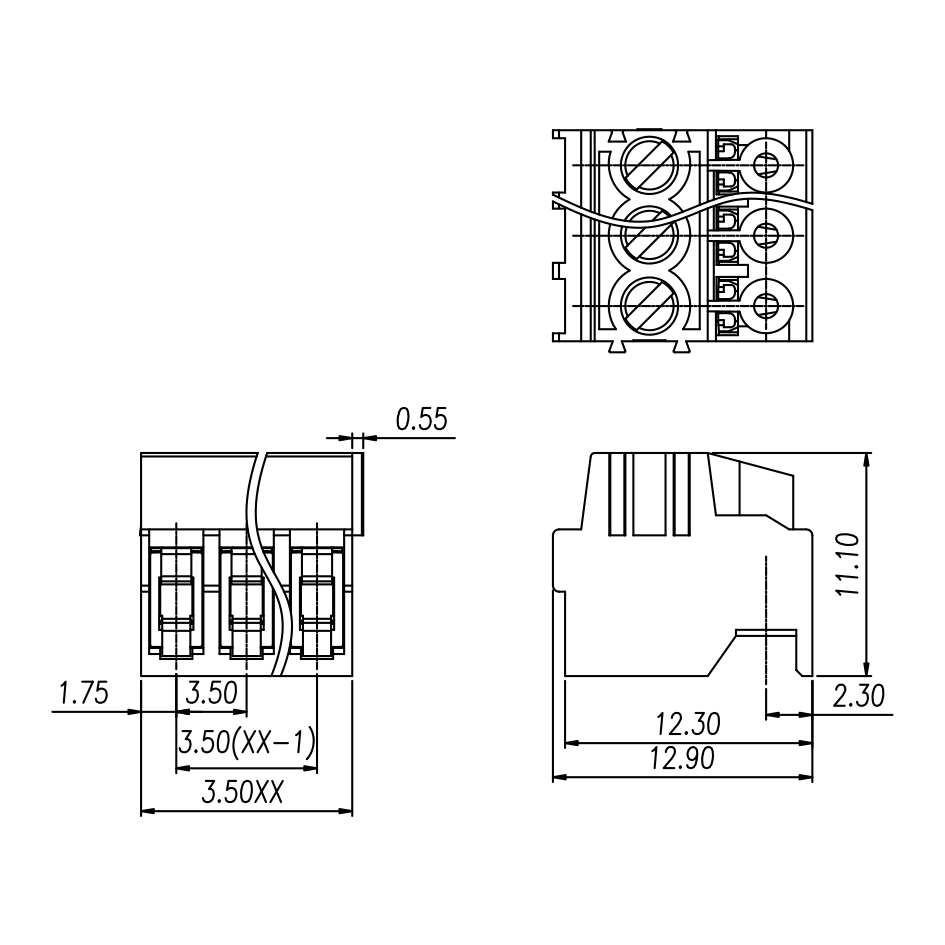

Dimensions
