15EDCKD-2.50

UL/CUL

Use Group B C D
Rated Voltage 150 V - -
Rated Current 5 A - -
Wire Range 26 ~ 20 AWG
Dielectric Voltage-Withstand 1.3 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 100 V 160 V 320 V
Rated Current 6 A 6 A 6 A
Impulse Withstand Voltage 1.5 KV 2.5 KV 2.5 KV
Conductor Cross Section (Solid) 0.2 ~ 0.5 mm²
Conductor Cross Section (Flexible) 0.2 ~ 0.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 2.50 mm / 2 ~ 24 poles
Stripping Length 7 ~ 8 mm
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature -
Pin Dimensions -
PCB Hole Diameter -

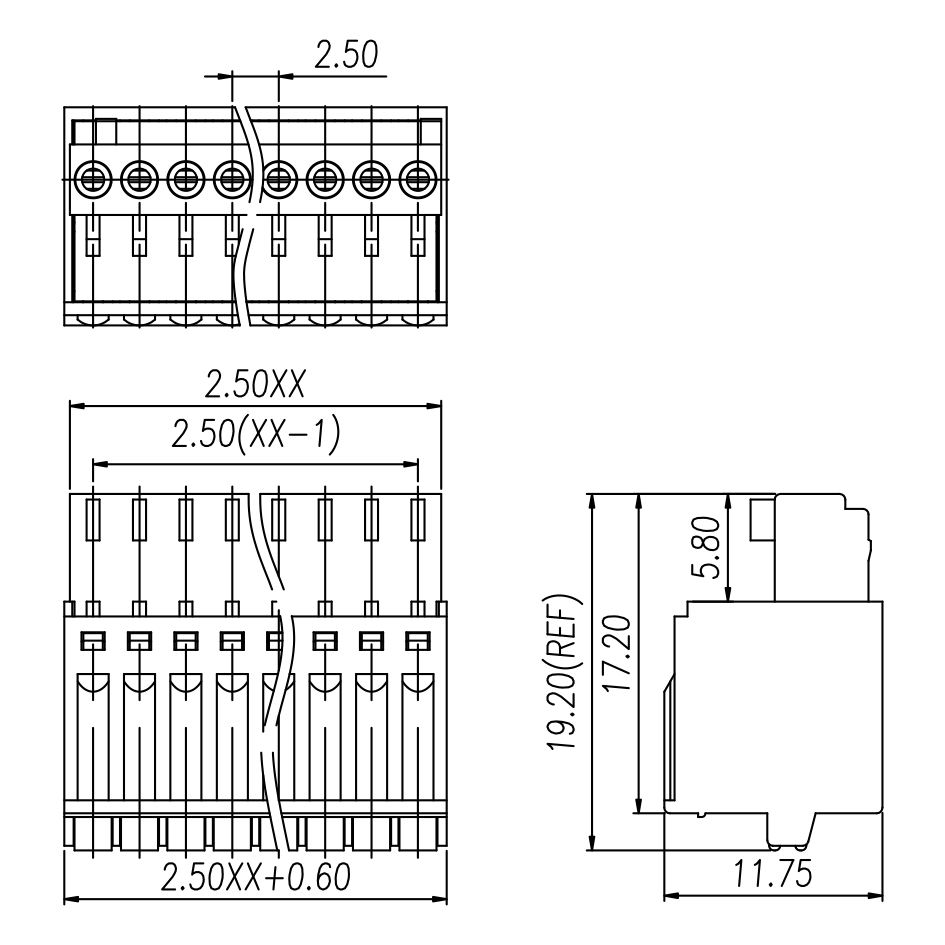

Dimensions
