AC350R-3.50

UL/CUL

Use Group B C D
Rated Voltage 300 V - -
Rated Current 10 A - -
Wire Range 24 ~ 18 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 160 V 250 V 320 V
Rated Current 13.5 A 13.5 A 13.5 A
Impulse Withstand Voltage 2.5 KV 2.5 KV 2.5 KV
Conductor Cross Section (Solid) 0.5 ~ 1.0 mm²
Conductor Cross Section (Flexible) 0.5 ~ 1.0 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 3.50 mm / 2 ~ 24 poles
Stripping Length 5 ~ 6 mm
Screw / Torque M2.0 / 0.2 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions ⌀0.8 mm
PCB Hole Diameter ⌀1 mm

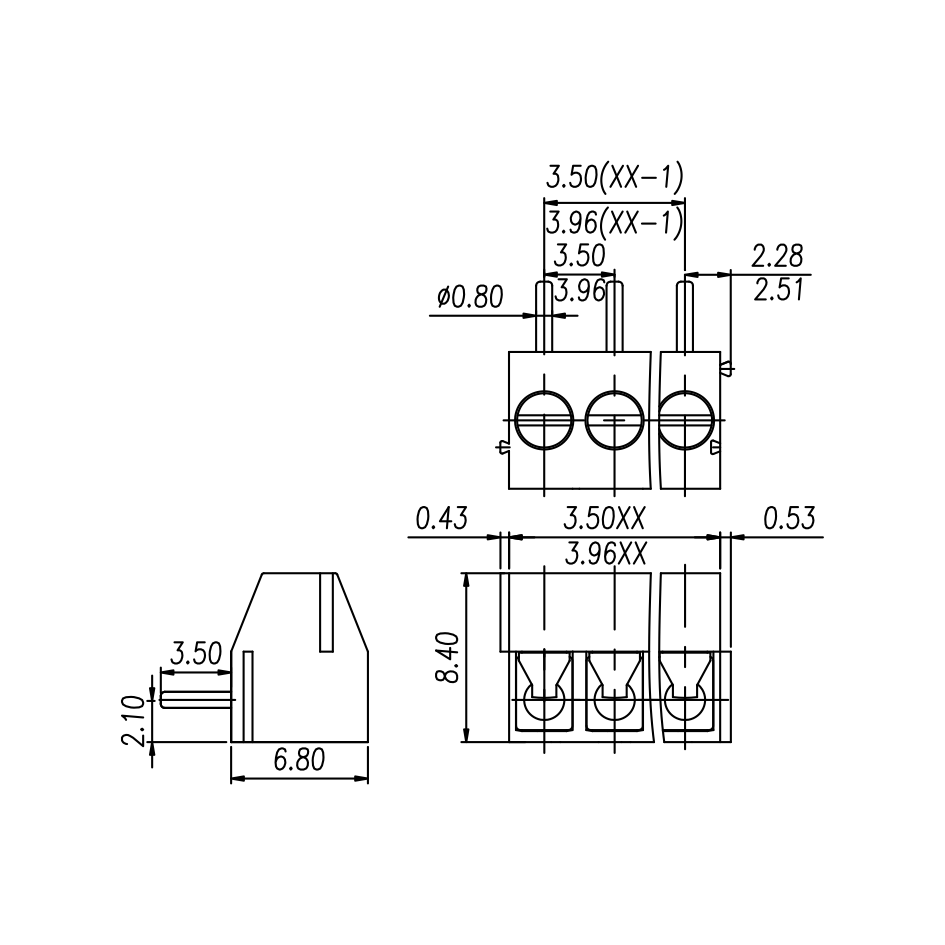

Dimensions

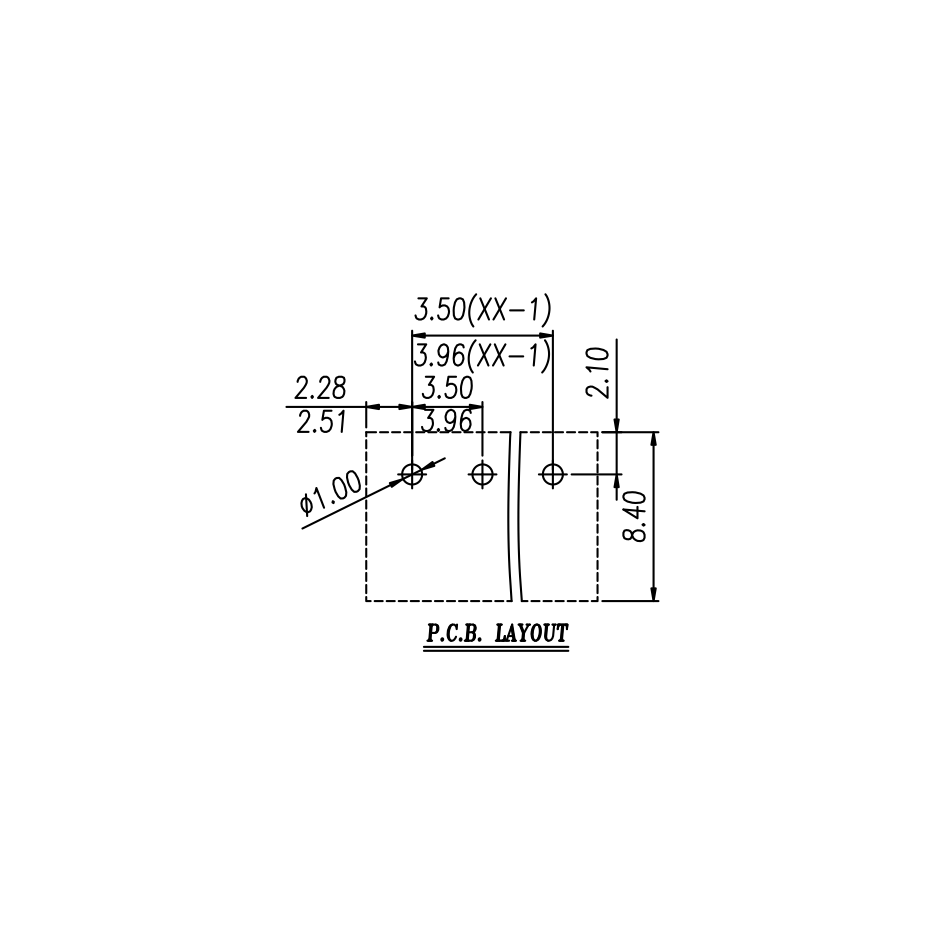

PCB Opening diagram
