15EDCVHS-HT-3.50
UL/CUL
| Use Group | B | C | D |
|---|---|---|---|
| Rated Voltage | 150 V | - | - |
| Rated Current | 7 A | - | - |
| Wire Range | - | ||
| Dielectric Voltage-Withstand | 1.3 KV | ||
IEC
| Overvoltage Category | III | III | II |
|---|---|---|---|
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage | 80 V | 125 V | 200 V |
| Rated Current | 10 A | 10 A | 10 A |
| Impulse Withstand Voltage | 1.5 KV | 2.5 KV | 2.5 KV |
| Conductor Cross Section (Solid) | - | ||
| Conductor Cross Section (Flexible) | - | ||
Material
| Insulation Material | LCP | ||
| Flammability Rating | UL94V-0 | ||
| Conductor Material | Copper alloy | ||
| Contact Surface Plating | Sn plated | ||
Other Data
| Pitch / Poles | 3.50 mm / 2 ~ 24 poles | ||
| Stripping Length | 7 ~ 8 mm | ||
| Screw / Torque | - | ||
| Operating Temperature | -40 ~ +130 ℃ | ||
| Soldering Temperature | 285℃ / 10S | ||
| Pin Dimensions | 0.8 * 0.8 mm | ||
| PCB Hole Diameter | ⌀1.4 mm | ||

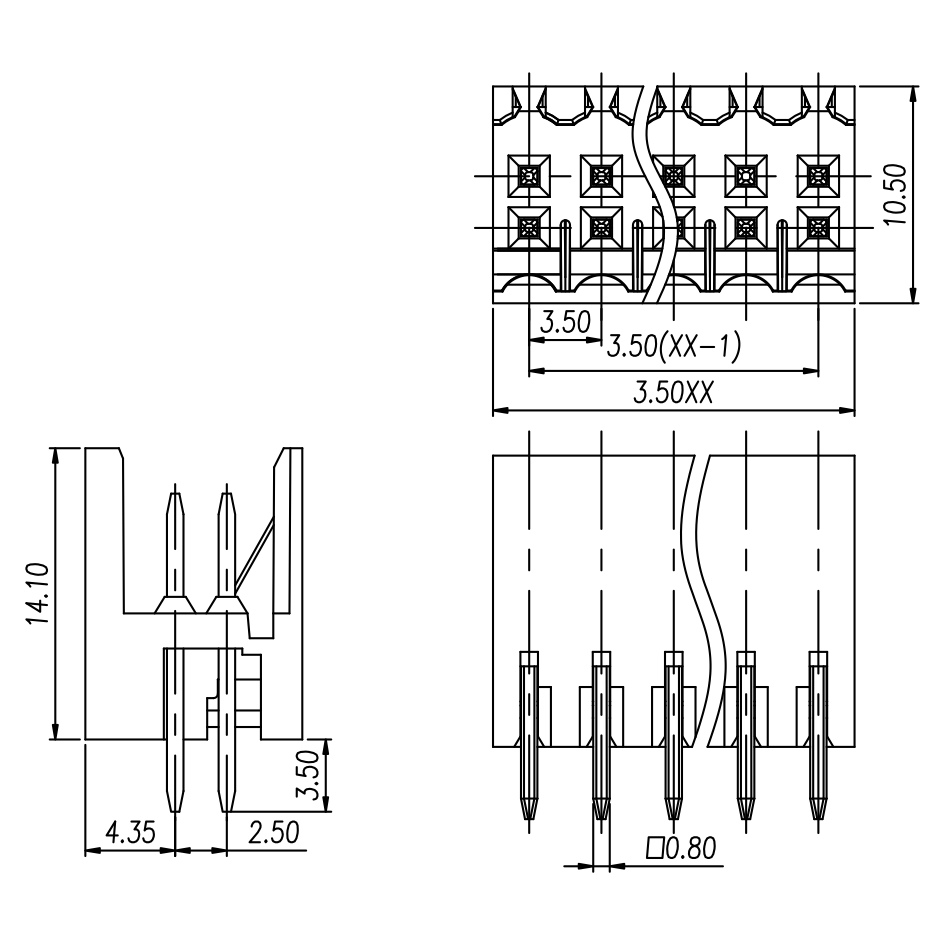

Dimensions

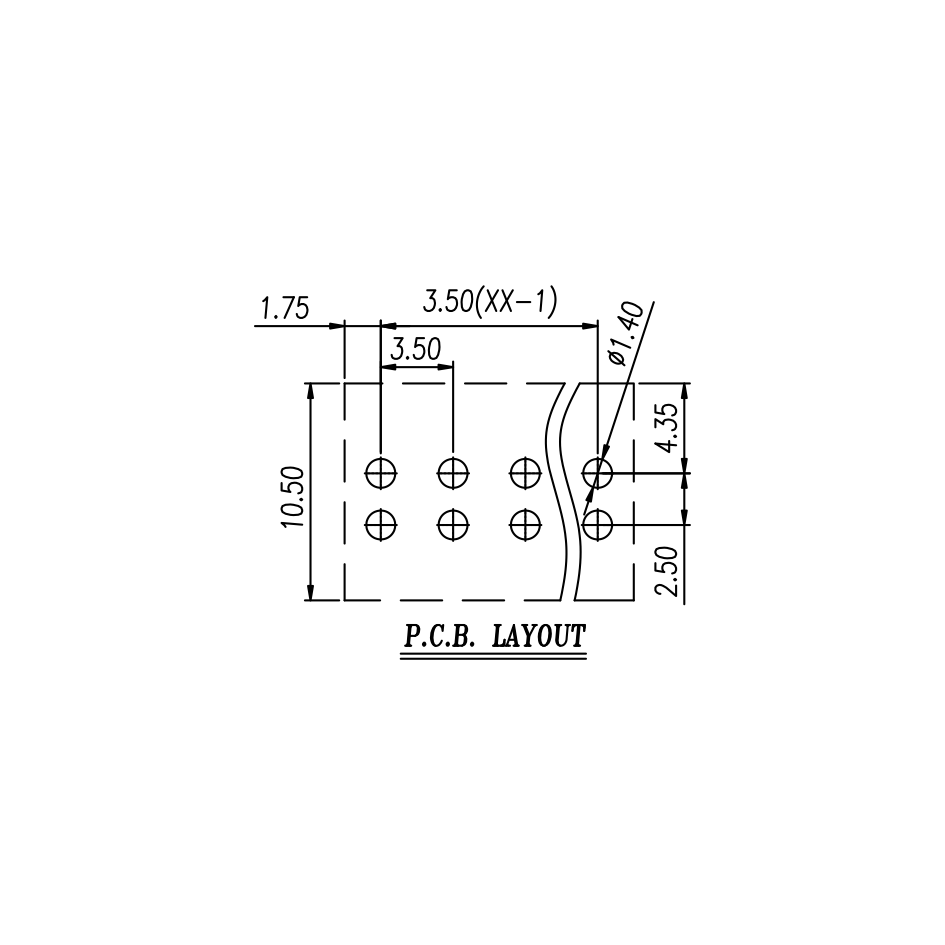

PCB Opening diagram
