AC126R-5.00

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 8 A - 8 A
Wire Range 26 ~ 14 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 250 V 400 V 630 V
Rated Current 18 A 18 A 18 A
Impulse Withstand Voltage 4 KV 4 KV 4 KV
Conductor Cross Section (Solid) 0.5 ~ 2.5 mm²
Conductor Cross Section (Flexible) 0.5 ~ 2.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 5.00 mm / 2 ~ 24 poles
Stripping Length 6 ~ 7 mm
Screw / Torque M2.5 / 0.25 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 0.6 * 1.0 mm
PCB Hole Diameter ⌀1.4 mm

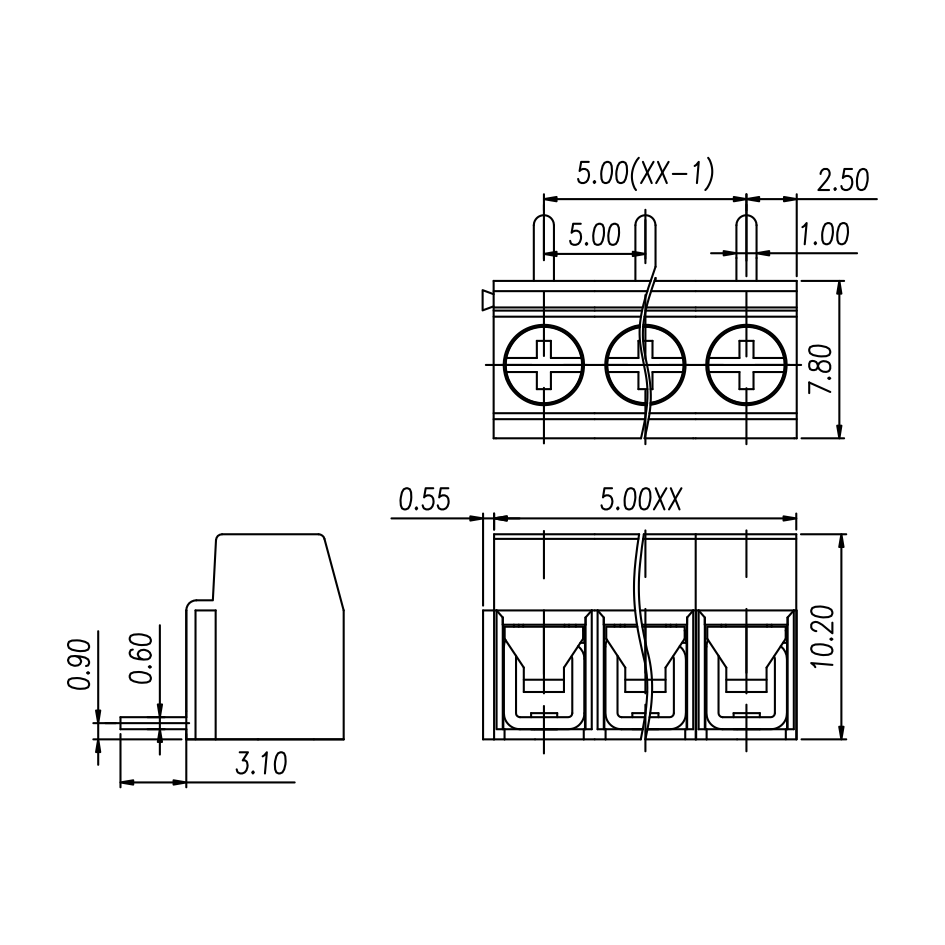

Dimensions

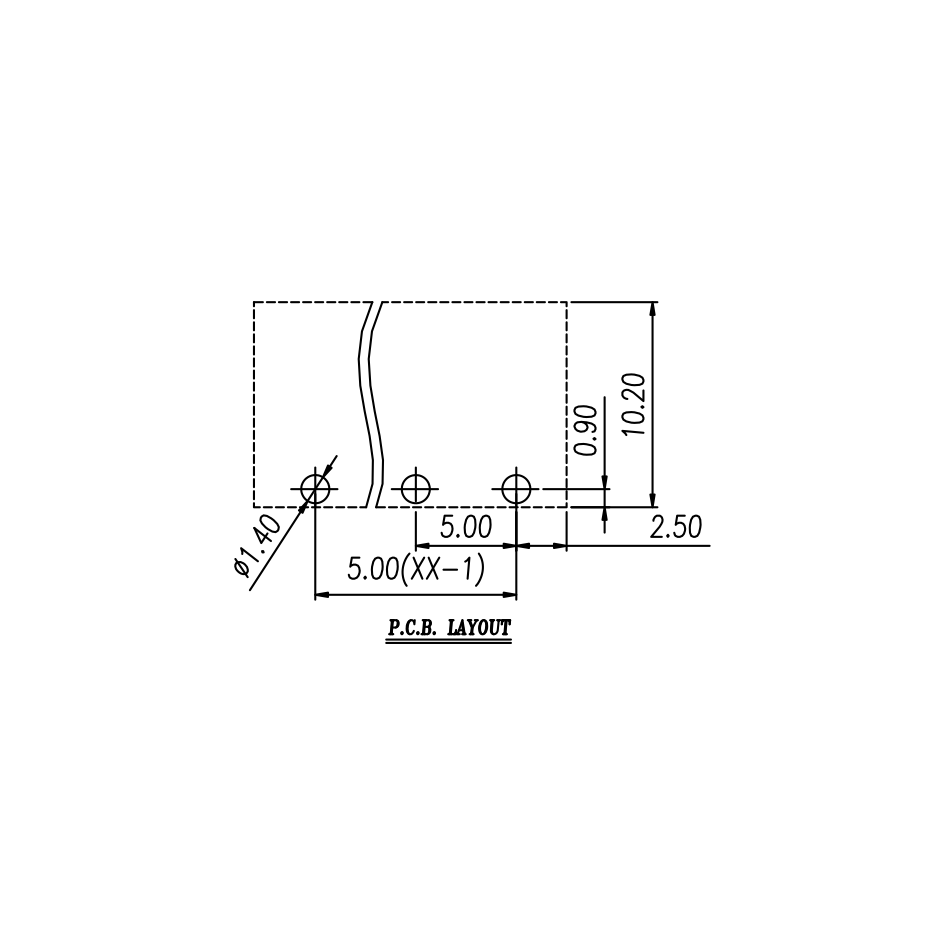

PCB Opening diagram
