AC142V-7.50

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 10 A - 10 A
Wire Range 24 ~ 14 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 500 V 630 V 1000 V
Rated Current 15 A 15 A 15 A
Impulse Withstand Voltage 6 KV 6 KV 6 KV
Conductor Cross Section (Solid) 0.2 ~ 1.5 mm²
Conductor Cross Section (Flexible) 0.2 ~ 1.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 7.50 mm / 2 ~ 24 poles
Stripping Length 10 mm
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 1.0 * 0.5 mm
PCB Hole Diameter ⌀1.4 mm

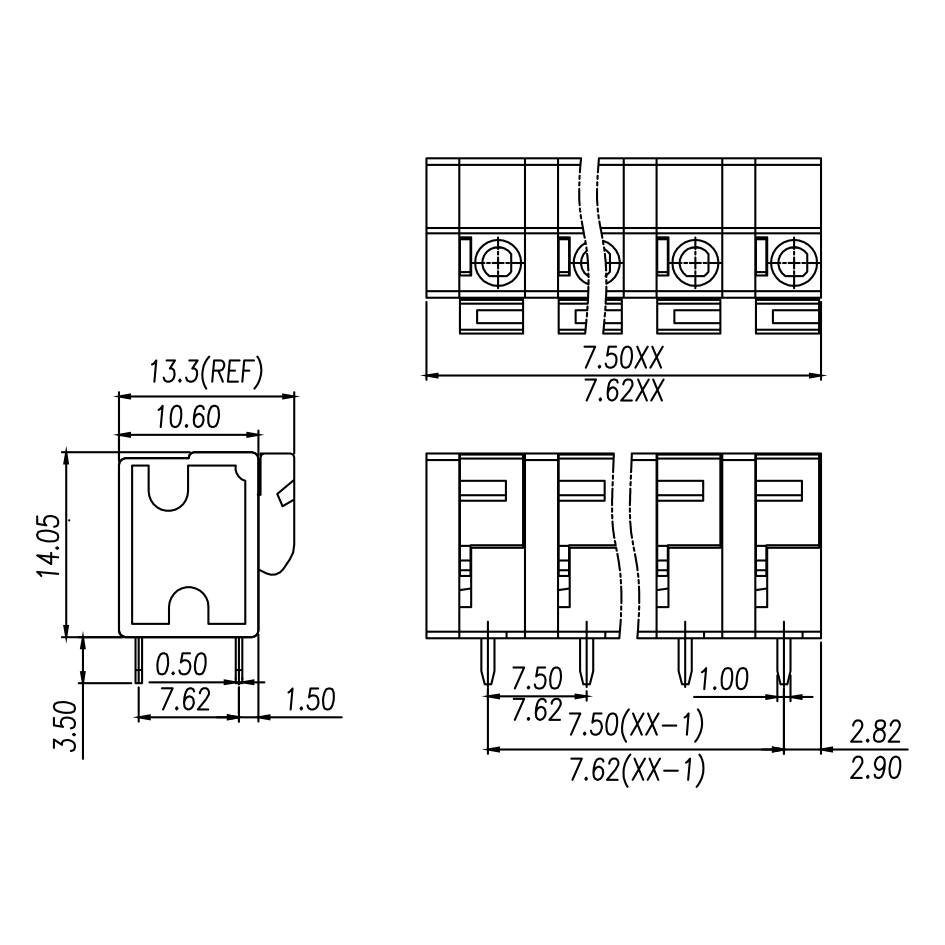

Dimensions

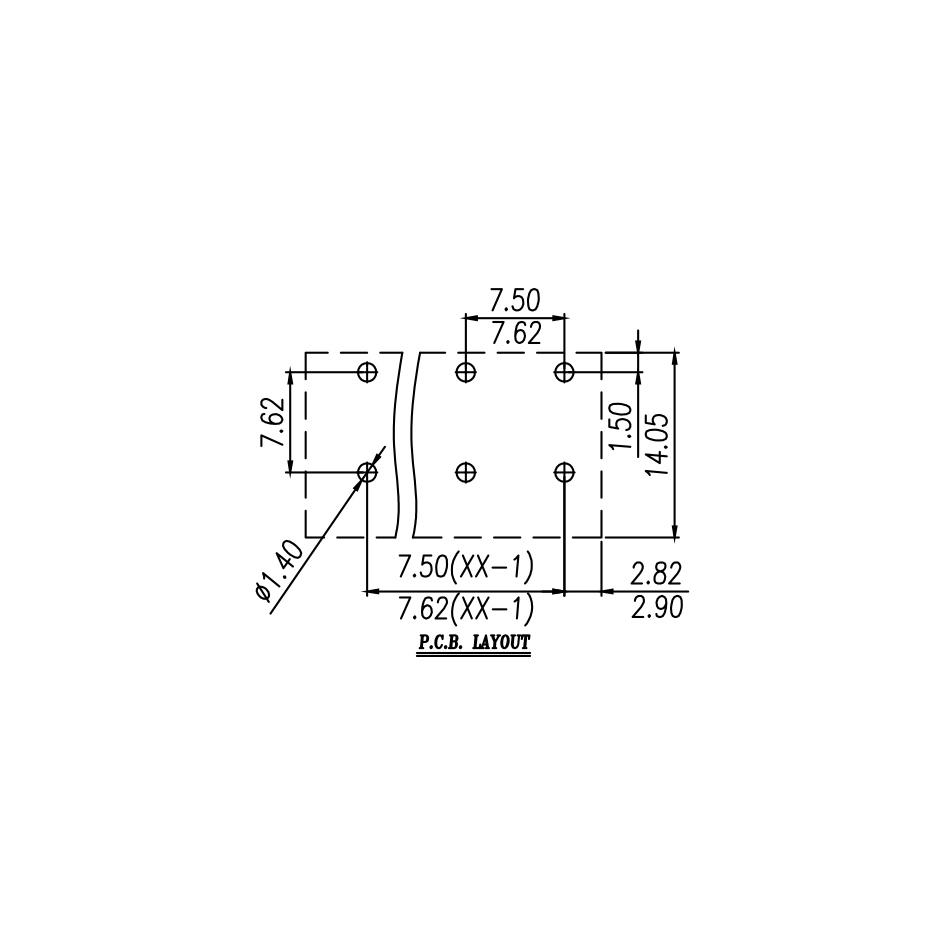

PCB Opening diagram
