AC2406R-7.50

UL/CUL

Use Group B C D
Rated Voltage 600 V 600 V 600 V
Rated Current 41 A 41 A 5 A
Wire Range 24 ~ 8 AWG
Dielectric Voltage-Withstand 2.2 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 800 V 1000 V 1000 V
Rated Current 41 A 41 A 41 A
Impulse Withstand Voltage 8 KV 8 KV 8 KV
Conductor Cross Section (Solid) 0.2 ~ 10.0 mm²
Conductor Cross Section (Flexible) 0.2 ~ 10.0 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 7.50 mm / 2 ~ 24 poles
Stripping Length 11 ~ 13 mm
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 1.2 * 1.5 mm
PCB Hole Diameter ⌀2 mm

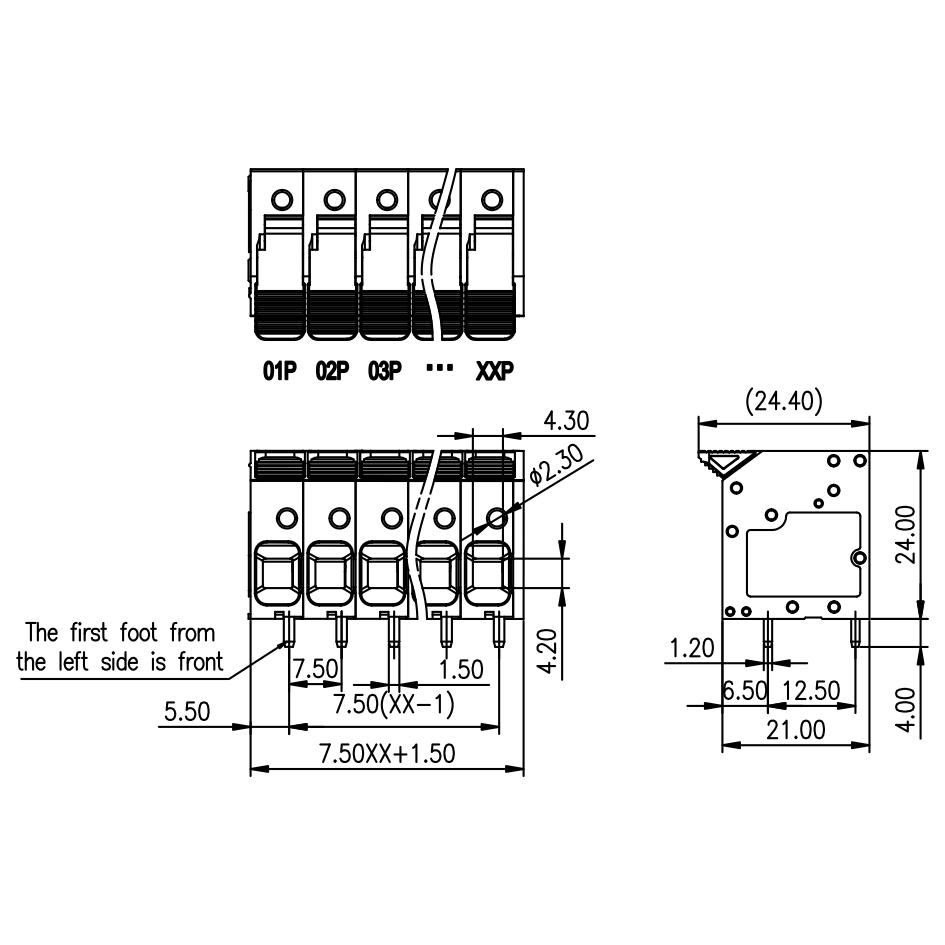

Dimensions

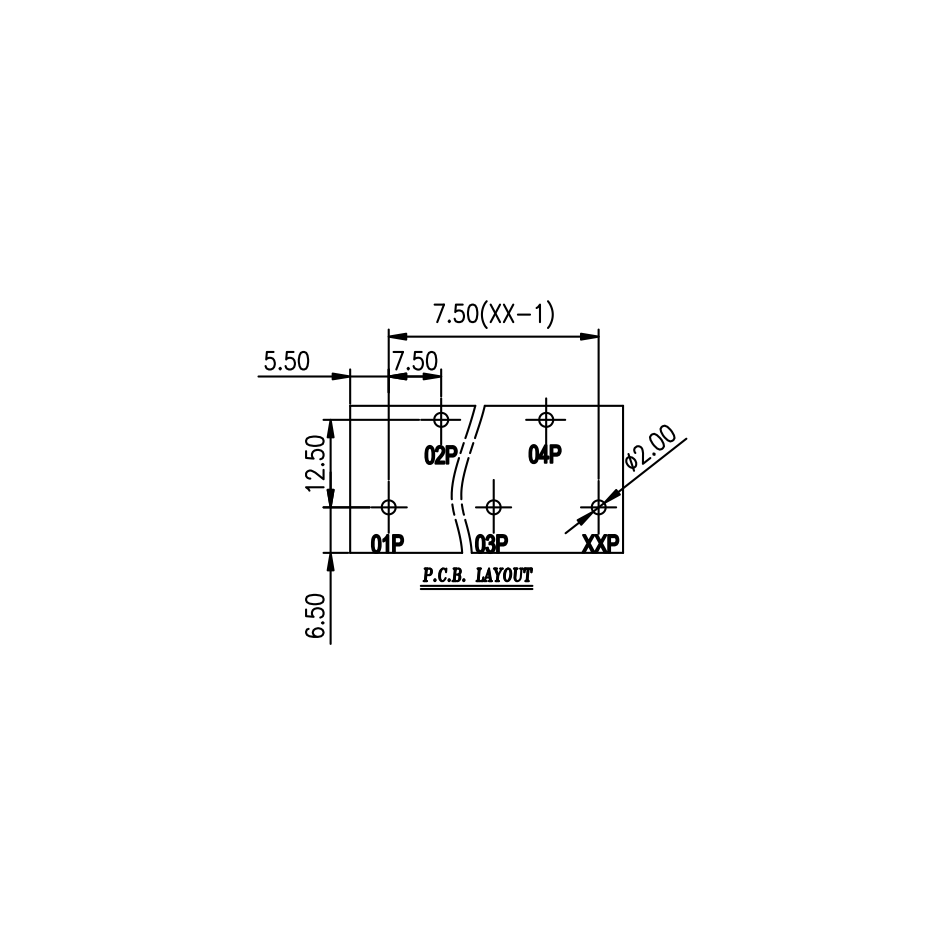

PCB Opening diagram
