AC8HSA-8.20

Electrical

Standard UL IEC
Rated Voltage 600 V 450 V
Rated Current 20 A 32 A
Wire Range 20 ~ 12 AWG 4 mm²
Contact Resistance 20 mΩ
Insulation resistance 500MΩ / DC500V
Withstanding voltage AC2200V / 1Min

Other Data

Insulation Material PA66, UL94V-2
Conductor Material SPCC, Zn plated
Pitch 8.20 mm
Screw / Torque M2.5 Steel Zn plated / 0.4 N.m
Operating Temperature -40 ~ +105 ℃

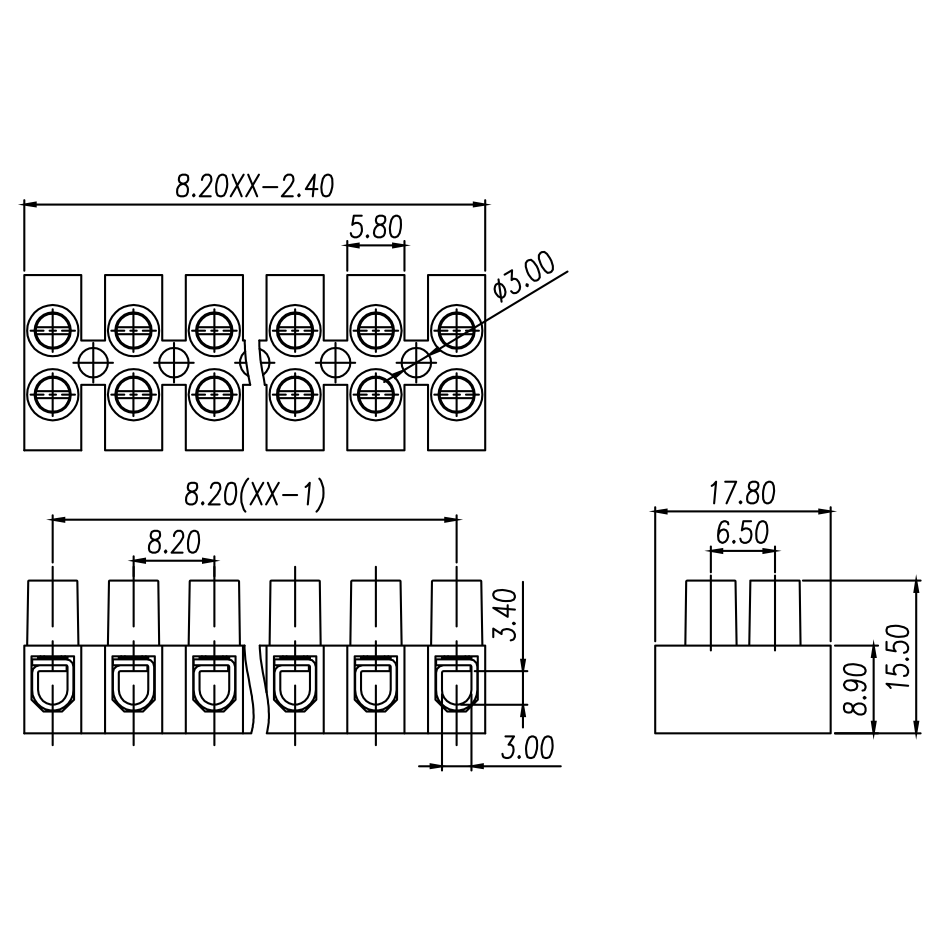

Dimensions
