AC10H-10.00

Electrical

Standard UL IEC
Rated Voltage 300 V 450 V
Rated Current 30 A 24 A
Wire Range 20 ~ 10 AWG 2.5 mm²
Contact Resistance 20 mΩ
Insulation resistance 500MΩ / DC500V
Withstanding voltage AC1600V / 1Min

Other Data

Insulation Material PA66, UL94V-2
Conductor Material Copper alloy, Zn plated
Pitch 10.00 mm
Screw / Torque M3.0 Steel Zn plated / 0.5 N.m
Operating Temperature -40 ~ +105 ℃

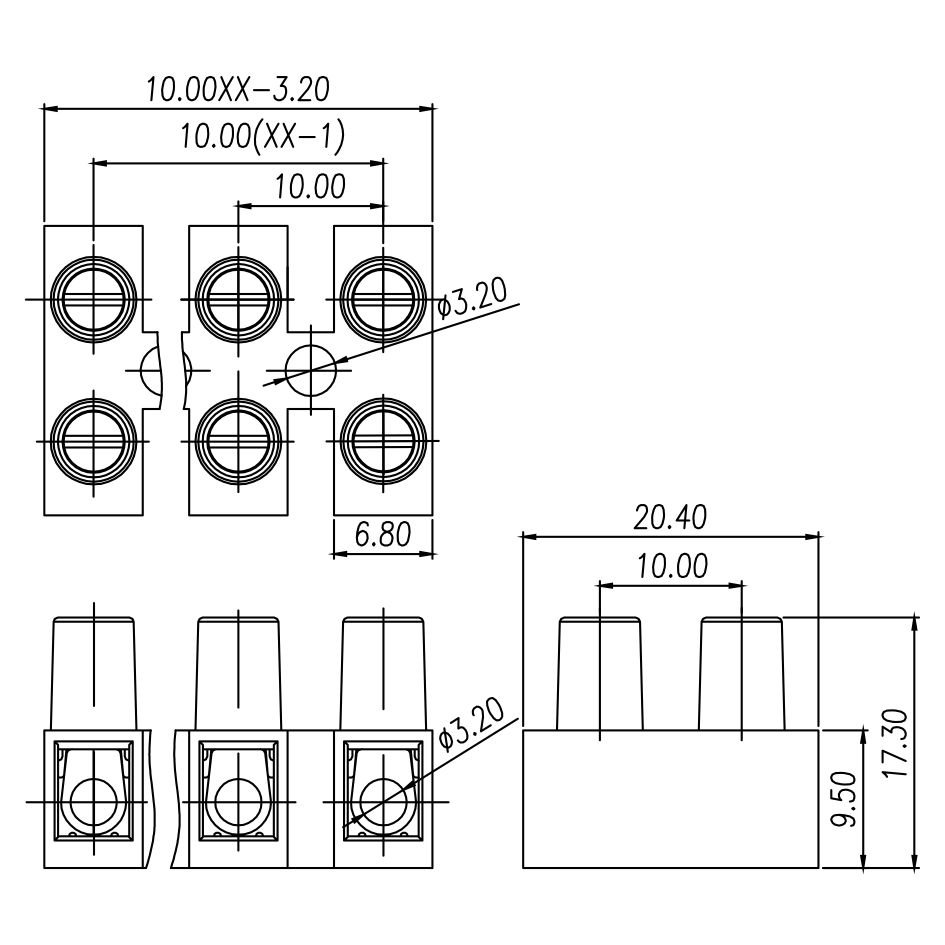

Dimensions
