AC16H-14.60

Electrical

Standard UL IEC
Rated Voltage 600 V 750 V
Rated Current 65 A 76 A
Wire Range 20 ~ 6 AWG 16 mm²
Contact Resistance 20 mΩ
Insulation resistance 500MΩ / DC500V
Withstanding voltage AC2200V / 1Min

Other Data

Insulation Material PA66, UL94V-2
Conductor Material Copper alloy, Ni plated
Pitch 14.60 mm
Screw / Torque M4.0 Steel Zn plated / 1.2 N.m
Operating Temperature -40 ~ +105 ℃

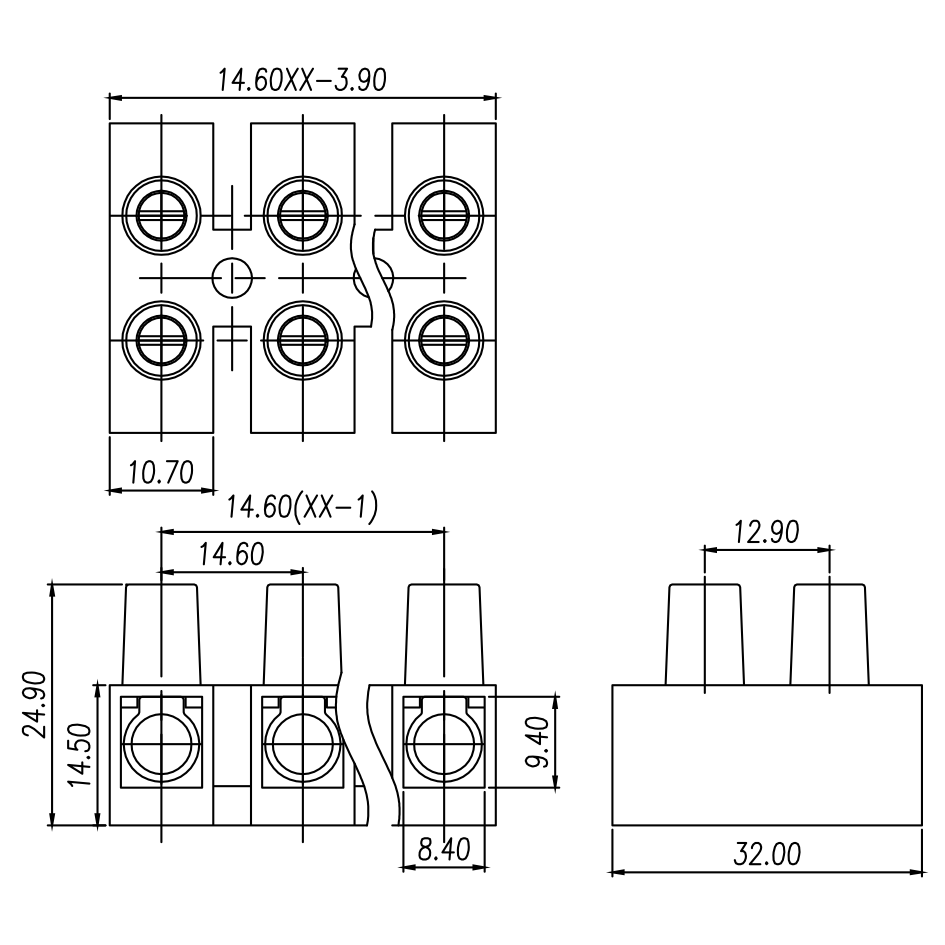

Dimensions
