AC10-13.00
Electrical
Standard | UL | IEC |
---|---|---|
Rated Voltage | 600 V | - |
Rated Current | 50 A | - |
Wire Range | 22 ~ 8 AWG | - |
Contact Resistance | 20 mΩ | |
Insulation resistance | 1000MΩ / DC500V | |
Withstanding voltage | AC2500V / 1Min |
Other Data
Insulation Material | PBT, UL94V-0 | |
Conductor Material | Copper alloy, Sn plated | |
Pitch / Poles | 13.00 mm / 1 ~ 15 poles | |
Screw / Torque | M4.0 Steel Ni plated / 1.2 N.m | |
Operating Temperature | -40 ~ +130 ℃ |

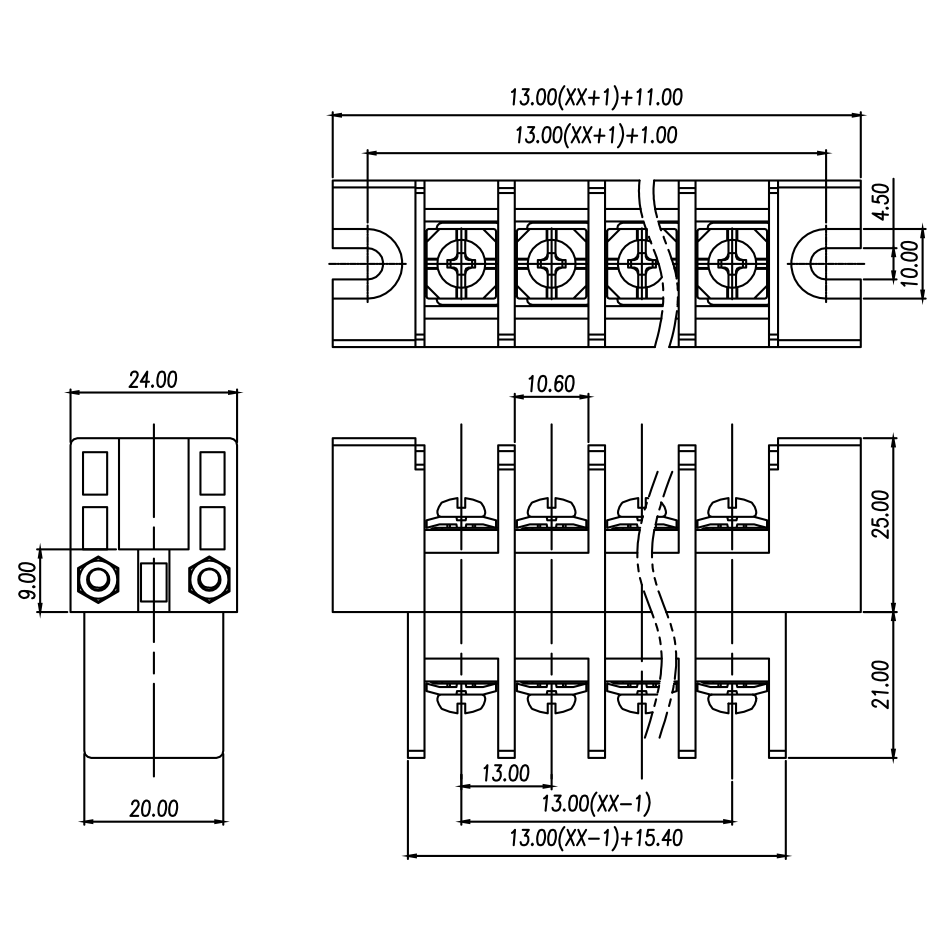

Dimensions

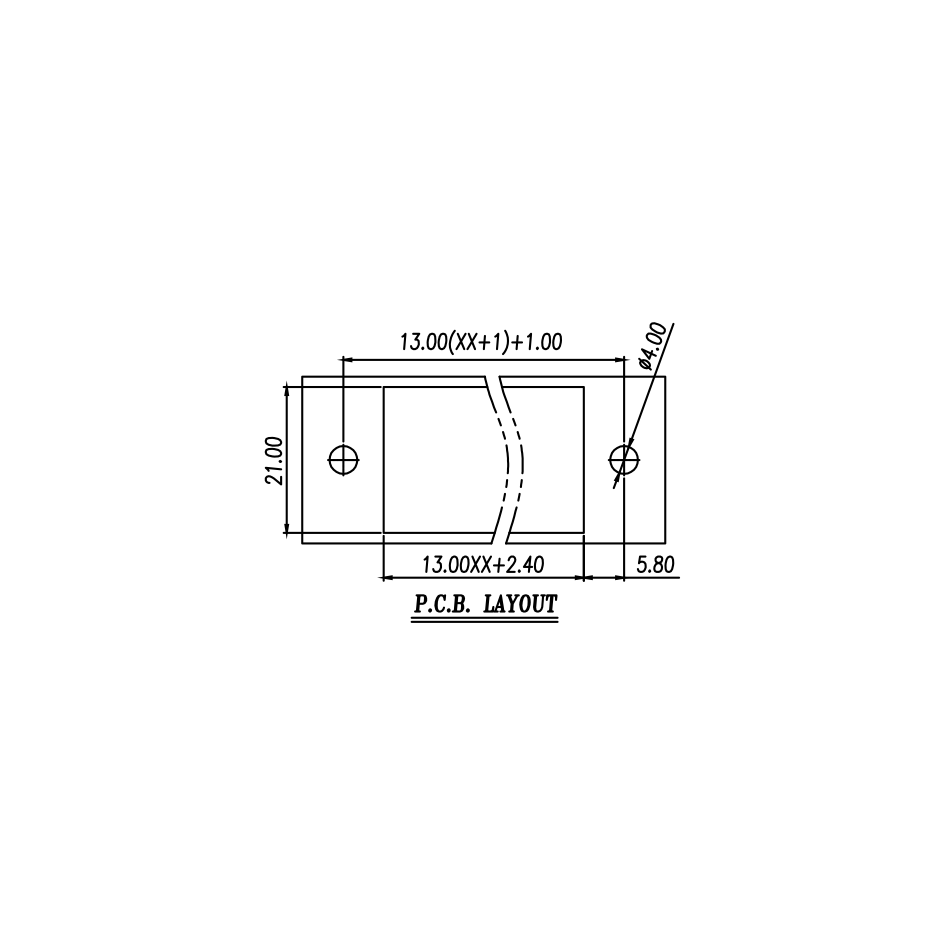

PCB Opening diagram
