AC10-27.00
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 600 V | - |
| Rated Current | 170 A | - |
| Wire Range | 10 ~ 2 AWG | - |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 1000MΩ / DC500V | |
| Withstanding voltage | AC2500V / 1Min | |
Other Data
| Insulation Material | PBT, UL94V-0 | |
| Conductor Material | Copper alloy, Sn plated | |
| Pitch / Poles | 27.00 mm / 1 ~ 15 poles | |
| Screw / Torque | M8.0 Steel Zn plated / 6 N.m | |
| Operating Temperature | -40 ~ +130 ℃ | |

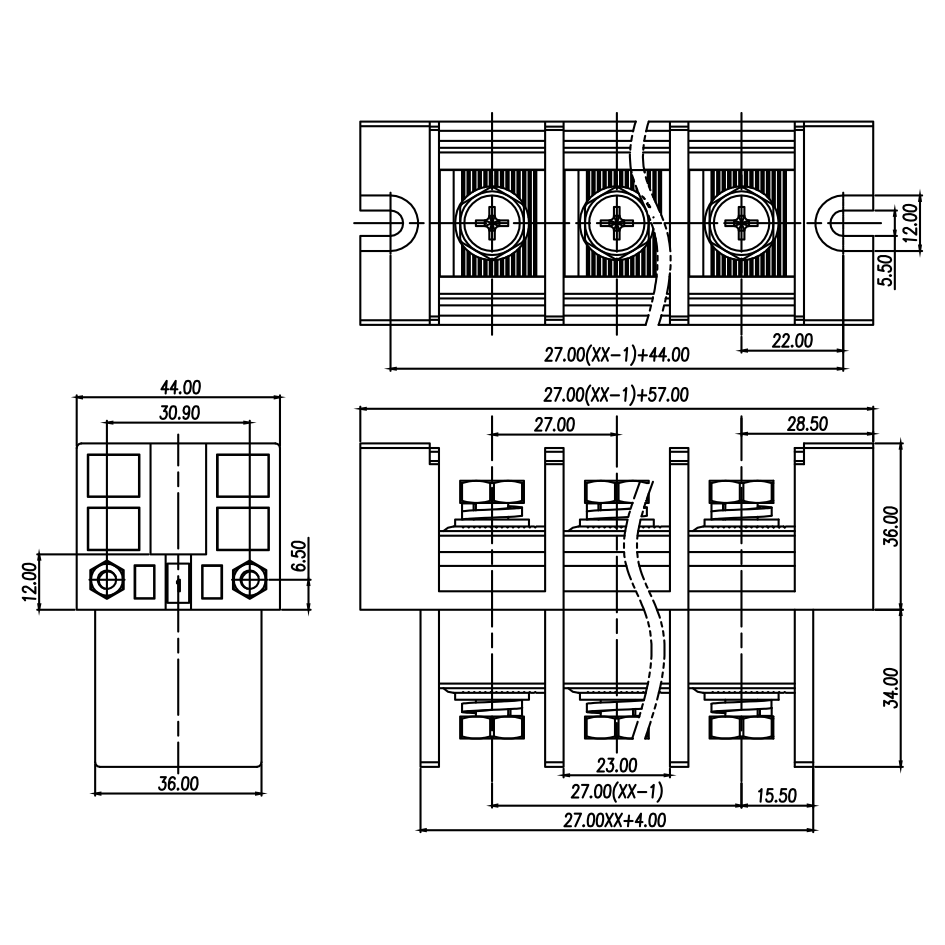

Dimensions

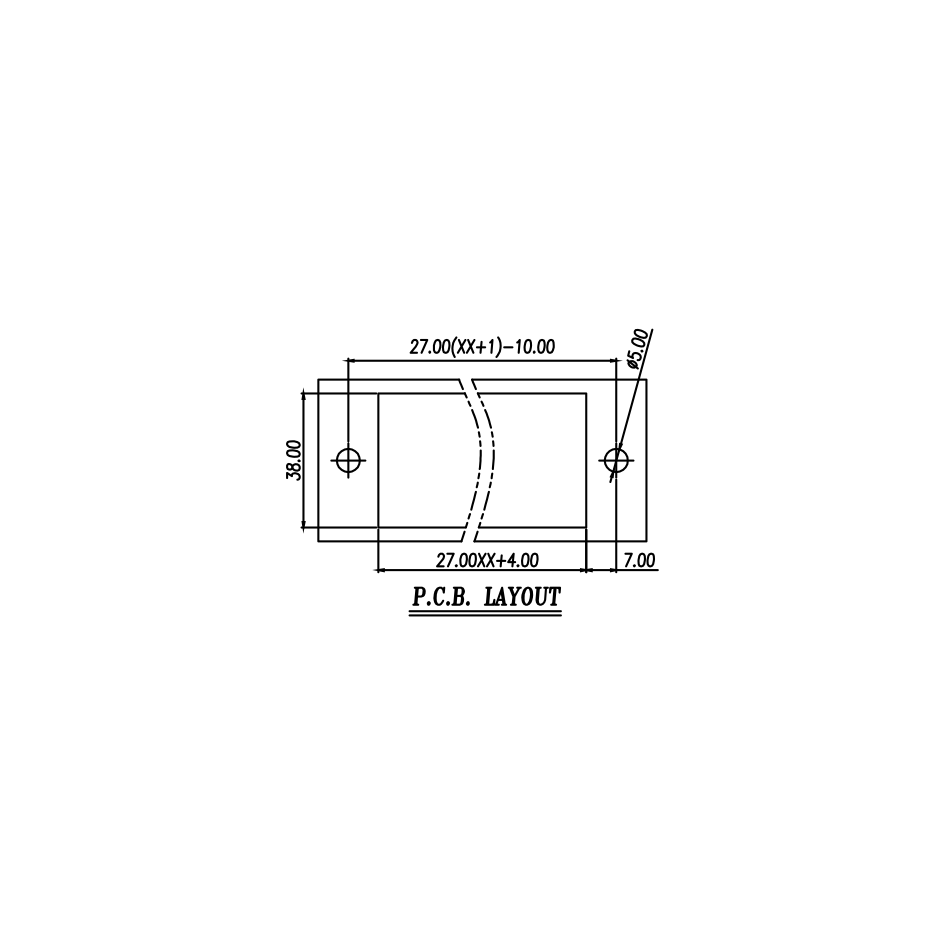

PCB Opening diagram
