AC5401D-5.00

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 15 A - 10 A
Wire Range 28 ~ 12 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 320 V 320 V 630 V
Rated Current 16 A 16 A 16 A
Impulse Withstand Voltage 4 KV 4 KV 4 KV
Conductor Cross Section (Solid) 0.25 ~ 2.5 mm²
Conductor Cross Section (Flexible) 0.25 ~ 2.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 5.00 mm / 2 ~ 24 poles
Stripping Length 8 ~ 9 mm
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature -
Pin Dimensions -
PCB Hole Diameter -

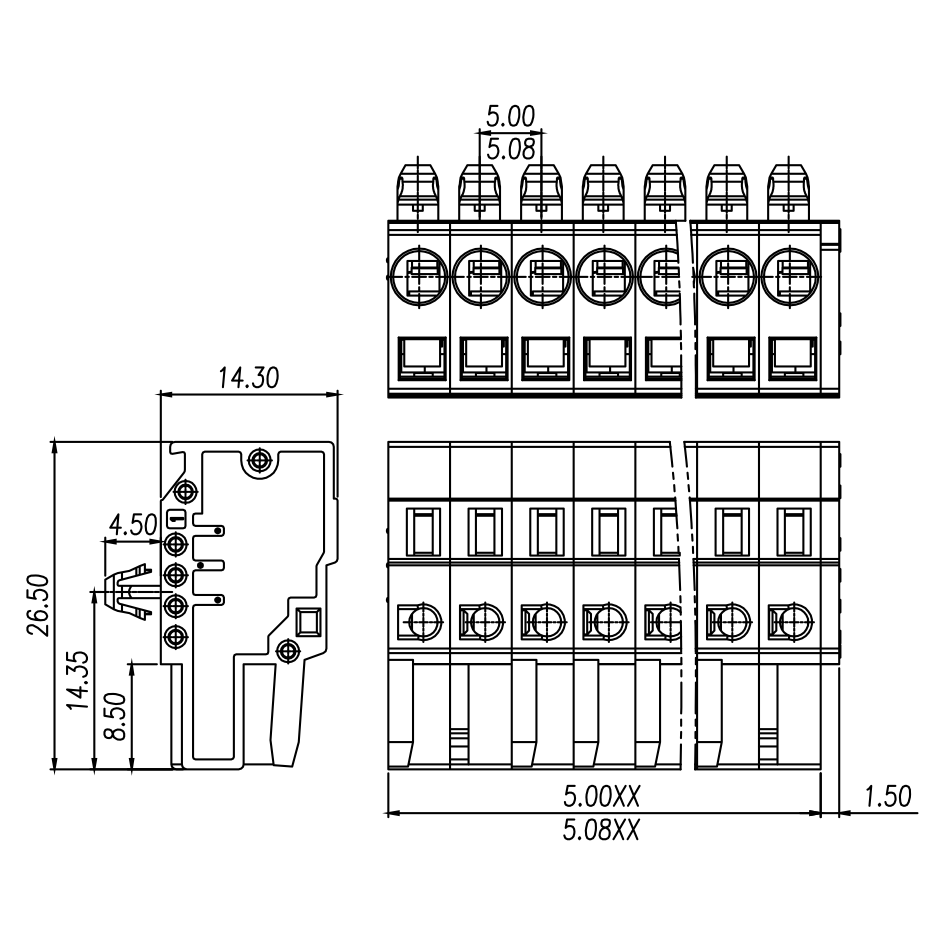

Dimensions
